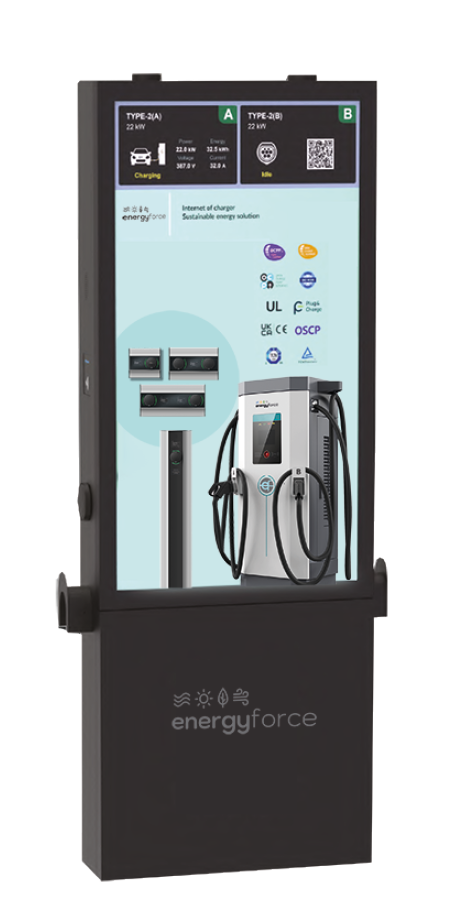

Vision
Digital Display
following environments.
Product Features
Benefits
- Easy configuration to any charging network
- OCA &OCPI official member
- OCPP 1.6J, OCPP 2.0.1
- OCPP Smart Charging
Easy to Operate and Maintain
Empower your EV charging experience with EnergyForce ChargeControl – a dynamic Charge Point Operator enabling remote management, real-time reporting, and total visibility of your charging network.
Technical Specification
| EnergyForce Vision | |||
|---|---|---|---|
|
Voltage (Vac) |
Single Phase 230V/ Three Phase 400V |
||
|
Frequency (Hz) |
50/60Hz |
||
|
Current Output |
32A Max x 2 |
||
|
Charging Connector |
Type-2 socket x 2 |
||
|
MCB |
50A MCB x 2 |
||
|
RCD |
Type-B RCCB x 2 |
||
|
SPD |
40kA SPD |
||
|
Meter |
MID Certified Meter x 2 |
||
|
Indicators |
Standby(Green), Charging(Flashing Green), Fault(Red), Warning(Flash Red) |
||
|
Network Connectvity |
Ethernet, WLAN, Celluar |
||
|
RFID |
ISO 14443 A/B |
||
|
Display |
55’ LCD |
||
|
Resolution |
1920 x 1080 |
||
|
Brightness |
2500 nits |
||
|
Data Protocol |
OCPP1.6J, OCPP2.0.1 |
||
|
Operation Temp. |
-20°C ~ 45 °C / -4 °F ~ 113°F |
||
|
Storage Temp. |
-40 °C ~ 70 °C / -40 °F ~ 158 °F |
||
|
Working Humidity |
< 98% relative humidity, non-condensing |
||
|
Ingress Protecton |
IP66 |
||
|
Dimension (H x W x D, mm) |
2000x895x220 mm |
||
|
Net Weight |
125Kg |
||
|
Web Portal Management |
Yes |
||
|
Mobile App |
ios/Android |
||
|
Certification |
CE, IEC 61851-1, IEC 62196-2 |
||
Dimensions
EV Charger Range
EnergyForce Wallbox
Elegant design with
enhanced performance
enhanced performance
Product Features
- OLED screen
- Smart LED indicator lights
- RFID
- Smart-app technology
EnergyForce Wallbox Duo
Sleek design with
dual charging capabilities
dual charging capabilities
Product Features
- Two charging sockets
- Dual charge sessions simultaneously
- RFID
- Smart-app technology
EnergyForce PowerStack
Satellite
EV Charging Solution
EV Charging Solution
Product Features
- 12.1 inch LCD/LED screen
- Insulation monitoring function
- Multi outlets to charge multiple vehicles simultaneously
- High efficiency and high reliability
EnergyForce Vision
EV Charger
with Digital Display
with Digital Display
Product Features
- 55’ LED Display for excellent experience
- Smart Load Balancing
- Smart network connectivity
- User Authentication via RFID or Mobile App
EnergyForce DC Wallbox
Fast Charging
Wallbox
Wallbox
Product Features
- Customised Power Modules – 30KW
- Smart Charging
- Smart Load Balancing
- Easy configuration to any charging network
Our chargers are compatible with
