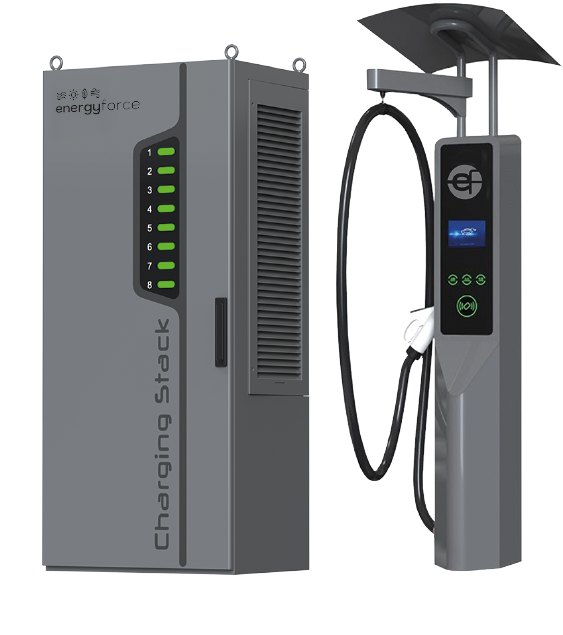

PowerStack
Solution
following environments.
Product Features
- Comply with CCS, Chademo connectors
- Flexible power distribution function, dynamically adjust output power according to the demand of electric vehicles.
- Multi outlets to charge multiple vehicles simultaneously, the output and power as follows: configurable 2~12 outlets, 30~180KW flexible output.
- 12.1 inch LCD/LED screen to display information in real time, easy operation and interactive user interface.
- Supports Web & mobile based payment methods.
- Insulation monitoring function, automatically turn off output to ensure safe charging.
- Provides maximum utilistation and modular concept for scalability.
- High efficiency and high reliability, as well as fast maintenance, with flexible capacity expansion protection.
Easy to Operate and Maintain
Empower your EV charging experience with EnergyForce ChargeControl – a dynamic Charge Point Operator enabling remote management, real-time reporting, and total visibility of your charging network.
Technical Specification
| PowerStack 360KW | |||
|---|---|---|---|
|
System capacity |
360KW |
||
|
Maximum outlets |
12 |
||
|
Output capacity of each route |
30~180kW |
||
|
Input voltage |
400VAC±20% |
||
|
Input voltage range |
260V~530V (260V~304VAC, output power derating 50%) |
||
|
Current share precision |
< 3% |
||
|
Power factor |
> 0.99 |
||
|
Working frequency |
50/60HZ |
||
|
Output voltage |
50VDC-1000VDC |
||
|
Current regulation accuracy |
< 1% |
||
|
Voltage regulation accuracy |
< 0.5% |
||
|
Current share precision |
< 3% |
||
|
Overall efficiency |
95% |
||
|
RFID system |
ISO/IEC14443A, Mifare; |
||
|
Network connection |
4G（GSM or CDMA）|LAN|WI-FI |
||
|
Communication Protocols |
OCPP1.6J (OCPP 2.0 upgradable) |
||
|
Operating temperature |
-35ºC-60ºC(-20ºC~ -35ºC，heating required) |
||
|
Storage Temperature |
-40ºC~+70ºC |
||
|
Operating humidity |
≤ 95%, non-condensing |
||
|
Altitude |
Up to 1000meters |
||
|
Protection |
IP54，IK10 |
||
|
Acoustic noise |
< 55dB |
||
|
Compliance and safety |
CE, IEC EN61851, EN62196, DIN70121, ISO15118 |
||
|
Dimension (W*D*H) DC PowerStack |
800*650*2250 |
||
|
Charge post |
320*320*2300 |
||
Dimensions
EV Charger Range
EnergyForce Wallbox
Elegant design with
enhanced performance
enhanced performance
Product Features
- OLED screen
- Smart LED indicator lights
- RFID
- Smart-app technology
EnergyForce DC Wallbox
Fast Charging
Wallbox
Wallbox
Product Features
- Customised Power Modules – 30KW
- Smart Charging
- Smart Load Balancing
- Easy configuration to any charging network
EnergyForce Vertical
Stylish, durable
and compact
and compact
Product Features
- OLED screen
- Dual charging
- RFID
- Smart-app technology
EnergyForce Wallbox Duo
Sleek design with
dual charging capabilities
dual charging capabilities
Product Features
- Two charging sockets
- Dual charge sessions simultaneously
- RFID
- Smart-app technology
EnergyForce Rapid Charger
Elegant design with
enhanced performance
enhanced performance
Product Features
- High Efficiency
- 8″ Touch Screen
- Two vehicles can be charged simultaneously
- Remote management
EnergyForce Vision
EV Charger
with Digital Display
with Digital Display
Product Features
- 55’ LED Display for excellent experience
- Smart Load Balancing
- Smart network connectivity
- User Authentication via RFID or Mobile App
EnergyForce PowerStack
Satellite
EV Charging Solution
EV Charging Solution
Product Features
- 12.1 inch LCD/LED screen
- Insulation monitoring function
- Multi outlets to charge multiple vehicles simultaneously
- High efficiency and high reliability
