Rapid Charger
Rapid charger using cutting-edge
technology.
following environments.
Product Features
Easy to Operate and Maintain
Empower your EV charging experience with EnergyForce ChargeControl – a dynamic Charge Point Operator enabling remote management, real-time reporting, and total visibility of your charging network.
Technical Specification
| EFR-60KW | EFR-120KW | EFR-180KW | |
|---|---|---|---|
|
Input Rating |
3-phase 260V-530V AC, 50/60Hz (all models) |
||
|
Power Factor |
>=0.99 (all models) |
||
|
Efficiency |
95.5% (all models) |
||
|
Power Output |
60KW |
120KW |
180KW |
|
Output Voltage |
150V-1000V DC (all models) |
||
|
Output Current |
200A MAX |
400A MAX |
500A MAX |
|
Electrical Protection |
Over current, Short circuit, Over voltage, Under voltage, Ground fault, Lightning Surge, Over temperature (all models) |
||
|
Display |
8” TFT LCD touch screen |
||
|
Supporting Language |
Other language options available (all models) |
||
|
User Authentication |
RFID card reader, user name & password, mobile no. & pin code (all models) |
||
|
Push Buttons |
3 Physical buttons for multi-functional purpose, Emergency stop (all models) |
||
|
Charge Options |
Charge by duration, by energy, by amount (all models) |
||
|
Operating Temperature |
(-30℃ to +55℃) in operation, (-40℃ to +75℃) in storage (all models) |
||
|
Working Humidity |
95% relative humidity, non-condensing (all models) |
||
|
Altitude |
Up to 6000 feet (2000 m) (all models) |
||
|
IP Performance |
IP55 (all models) |
||
|
Cooling |
Forced air (all models) |
||
|
Charging Cable Length |
16.4 ft (5 m), straight cable (all models) |
||
|
Dimension (H x W x D, mm) |
1816 x 1007 x 750 mm (all models) |
||
|
Net Weight |
350Kg |
400Kg |
450Kg |
|
Network Interface |
Ethernet, 4G (all models) |
||
|
OCPP |
OCPP1.6J (all models) |
||
|
Web Portal & Mobile App |
Yes, iOS/Android (all models) |
||
|
Certification |
CE & TUV (all models) |
||
Dimensions
EV Charger Range
EnergyForce DC Wallbox
Fast Charging
Wallbox
Wallbox
Product Features
- Customised Power Modules – 30KW
- Smart Charging
- Smart Load Balancing
- Easy configuration to any charging network
EnergyForce Vision
EV Charger
with Digital Display
with Digital Display
Product Features
- 55’ LED Display for excellent experience
- Smart Load Balancing
- Smart network connectivity
- User Authentication via RFID or Mobile App
EnergyForce Wallbox Duo
Sleek design with
dual charging capabilities
dual charging capabilities
Product Features
- Two charging sockets
- Dual charge sessions simultaneously
- RFID
- Smart-app technology

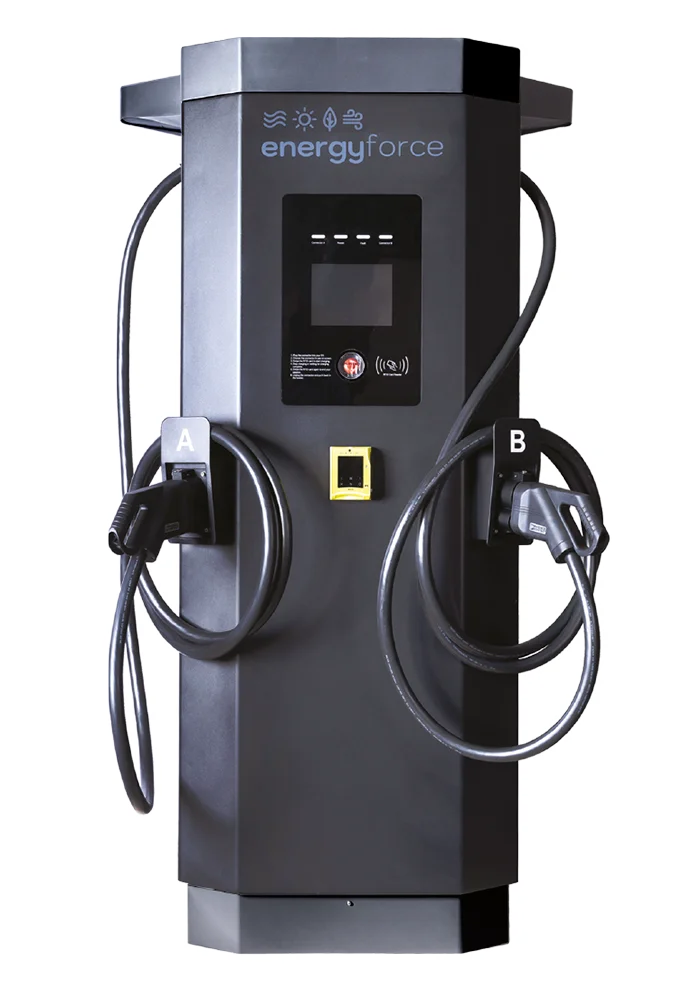

EnergyForce Rapid Charger
Elegant design with
enhanced performance
enhanced performance
Product Features
- High Efficiency
- 8″ Touch Screen
- Two vehicles can be charged simultaneously
- Remote management
EnergyForce PowerStack
Satellite
EV Charging Solution
EV Charging Solution
Product Features
- 12.1 inch LCD/LED screen
- Insulation monitoring function
- Multi outlets to charge multiple vehicles simultaneously
- High efficiency and high reliability
EnergyForce Wallbox
Elegant design with
enhanced performance
enhanced performance
Product Features
- OLED screen
- Smart LED indicator lights
- RFID
- Smart-app technology
EnergyForce Vertical
Stylish, durable
and compact
and compact
Product Features
- OLED screen
- Dual charging
- RFID
- Smart-app technology
Our chargers are compatible with
More about EnergyForce Solutions
Solar PV Panels
Explore how Solar PV Installations can help you lower your energy costs and achieve your Net Zero targets.
Battery Storage
Find out how our battery storage solution can operate collaboratively with you to save your business significant costings.
Charge Control
A dynamic Charge Point Operator enabling remote management, real-time reporting, and total visibility of your charging network.
Case Studies
Vertu Sunderland BMW
14KWP
303 Solar Panels
90,950 KWh estimated annual production
2 weeks installation time
Rybrook Blythe Valley Specialist Cars
62KWP
54,660 estimated annual production
1 Week installation time
164 solar panels
Rybrook Warrington Volvo
42KWP Solare
111 Panels
2 x Wallbox Duo External
1 x Wallbox Duo Internal
